6ES7455-1VS00-0AE0

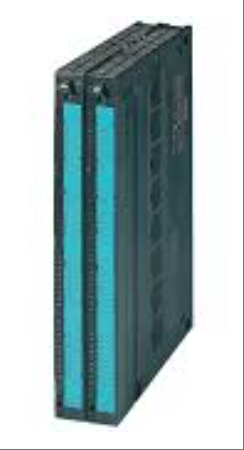

The 6ES7455-1VS00-0AE0 model product is the FM 455S closed-loop control template, which belongs to the SIMATIC S7-400 system function module. It has 16 channel closed-loop control capability, supports step or pulse control mode, and is equipped with 32 digital output and 16 analog input (including 1 additional thermocouple compensation input). It uses dual 48 pin front connectors to connect sensors and actuators, integrates red internal/external fault indicator lights and green digital input status indicator lights, and is suitable for industrial process control scenarios such as temperature, pressure, and flow. It is compatible with the SIMATIC PCS 7 process control system and can be configured and optimized with configuration software packages for parameterization.
Technical specifcations for 6ES7455-1VS00-0AE0
Brand and Model: SIEMENS, 6ES7455-1VS00-0AE0.
Purpose: As a regulating component of SIMATIC S7-400 system, it is suitable for closed-loop control tasks in the field of industrial automation.
Number of channels: It has 16 closed-loop control channels.
Input/output:
Analog input: 16 channels, used to obtain analog values and disturbance variable inputs; There is also an additional analog input used as temperature compensation when using thermocouples.
Digital input: 16 channels.
Digital output: 32 channels, used for 16 channel stepper or pulse controllers.
indicator light:
Red LED: Used for internal and external fault indication.
Yellow LED: Used for backup operation indication.
Green LED: Used to display the status of digital input.
Control algorithm: Supports self optimizing temperature control algorithm and PID algorithm.
Operation modes: including automatic, manual, safe mode, follow-up mode, and backup mode.
Sampling time: Depending on the resolution of the analog input and compensation input, it ranges from 20ms to 180ms for 12 bits and from 100ms to 1700ms for 14 bits.
Power supply: The 24VDC power supply for the actuator is provided externally.
Physical characteristics:
Net weight: 1.561kg.
Packaging dimensions: 23.30cm x 30.30cm x 6.50cm.
Origin: Germany.
Other features:
Equipped with feedforward compensation function, it can choose between analog input feedforward control and actual value with built-in self setting temperature controller.
The controller can run continuously without being affected by CPU failure or shutdown (backup mode).
Provide a configuration software package to parameterize FM 455, including all necessary screen formats for configuration, parameterization, and startup.
